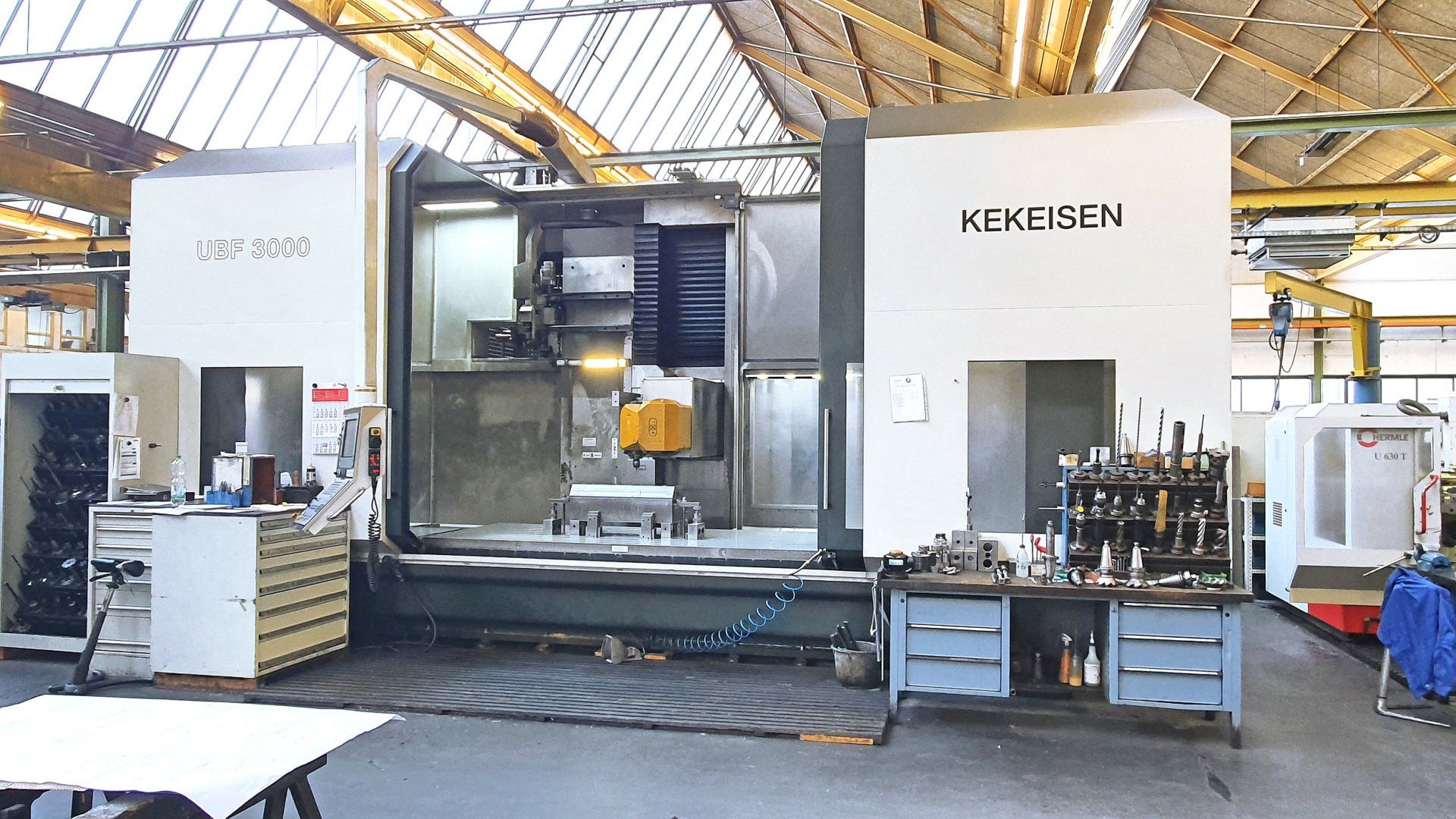

KEKEISEN Universal Bed Milling Machine UBF 3000/16

Year of manufacture 8/2013, machine no. F53270, well-maintained, very good condition

• 2-axis universal head automatically infinitely adjustable, with hydraulic clamping
• Tool holder SK50 according to DIN 69871/872
• Longitudinal travel of the table (X-axis) 3000 mm
• Cross travel of the headstock (Y-axis) 1600 mm
• Vertical travel of the headstock (Z-axis) 1600 mm
• Table size 3200 x 1320 mm, with T-slots 22 mm, distance 140 mm
• Table load 7000 kg
• Spindle power 30 kW (100% ED), max. torque 1120 Nm
• Spindle speed 20 - 7000 rpm (in 2 ranges continuously variable), with oil cooling
• Axis speeds 5 m/min or 18 m/min rapid traverse, X-axis 27 m/min
• CNC control Heidenhain iTNC 530 with fast CC424 and electronic handwheel HR 410
• Coolant system with internal cooling up to 50 bar, adjustable via potentiometer. Air/water switching.
• Edge gap filter with 600 l clean water tank and rinsing gun
• Tool changer with 50 positions max. Ø 125/250 mm, max. 400 mm long
• 3D probe m&h with radio transmission, remote diagnosis, BA3 and BA4

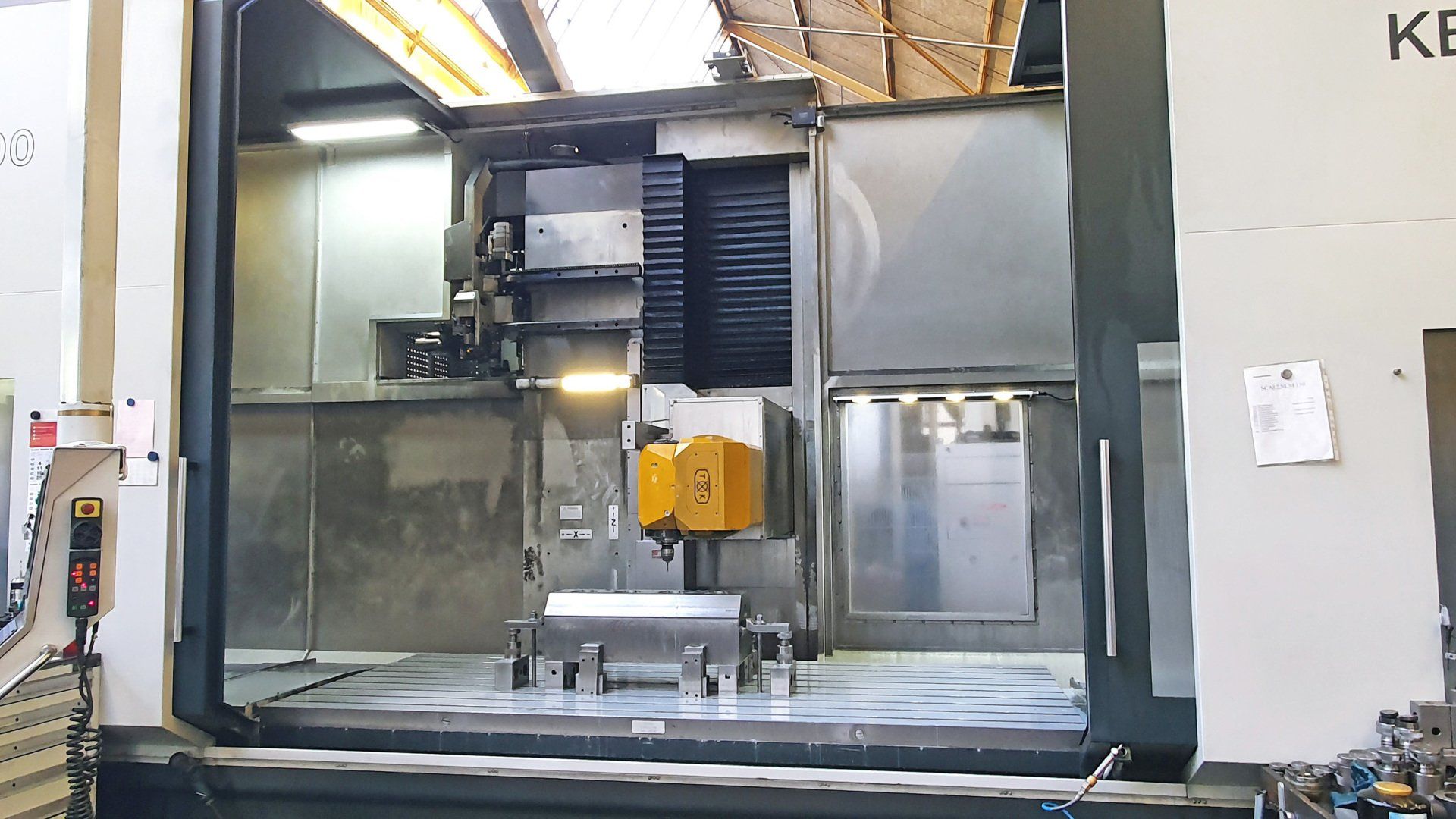

• Work area paneling all around, also closed at the top, with 2 chip conveyors
• Connection data 400 V; 50 Hz; approx. 55 kVA
• with mounting elements (fixators), without assembly and commissioning

Price on request

Delivery from Laupheim
