Top used machines from the manufacturer
as good as new, modernized, overhauled or in used original condition
UBF - the universal bed milling machine for the economical machining of larger parts

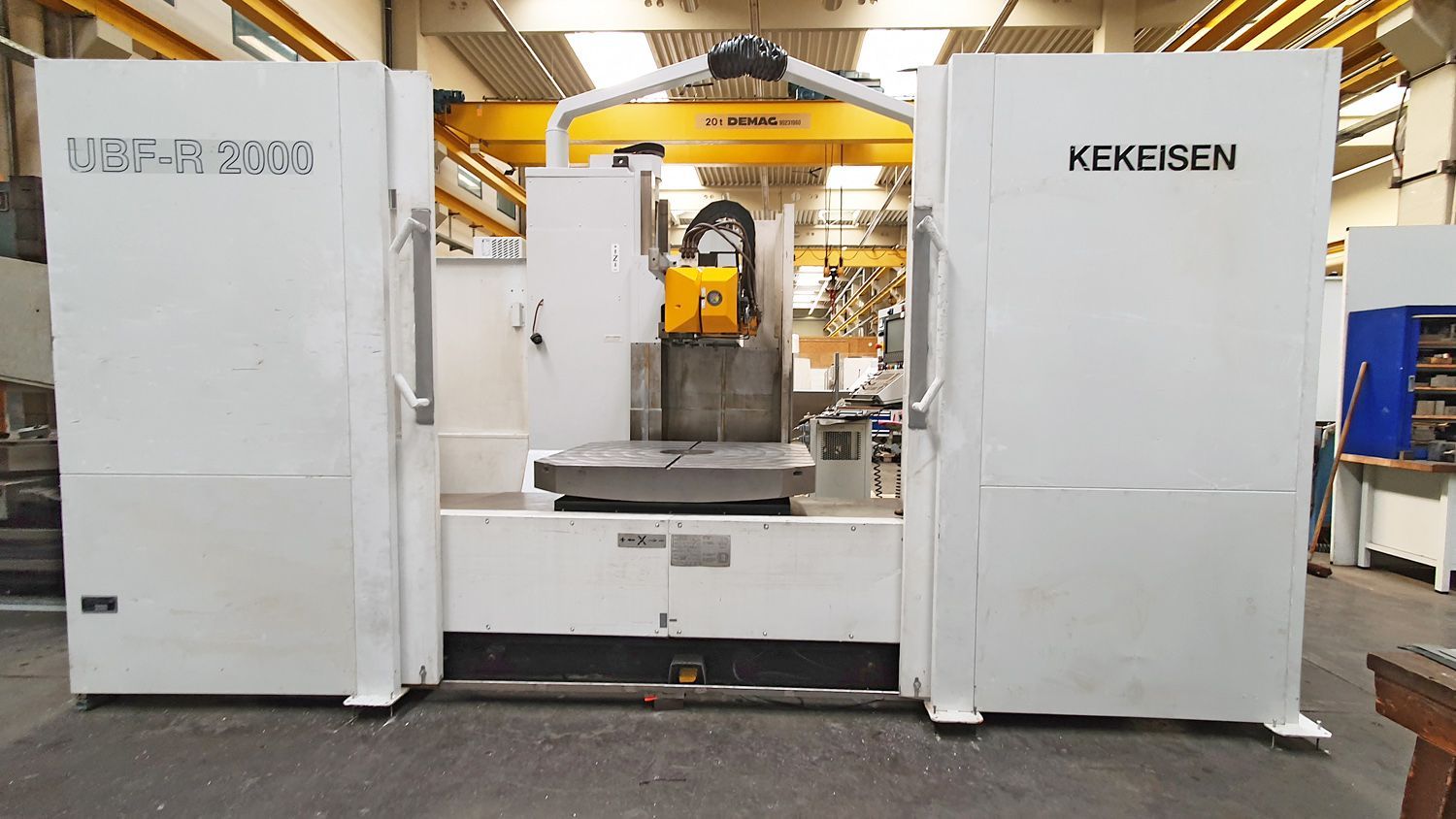

KEKEISEN universal bed milling machine UBF-R 2000/13
Year of manufacture 2000, machine no. F42460
well maintained, very good condition, mechanically overhauled in 2023
- 2-axis universal head automatically adjustable, with locking in Hirth gearing
Intermediate positions adjustable in 1° steps by tapping - Tool holder SK50 according to DIN 69871/872
- Longitudinal travel of the table (X-axis) 2000 mm
- Cross travel of the headstock (Y-axis) 1200 mm
- Vertical travel of the headstock (Z-axis) 1300 mm

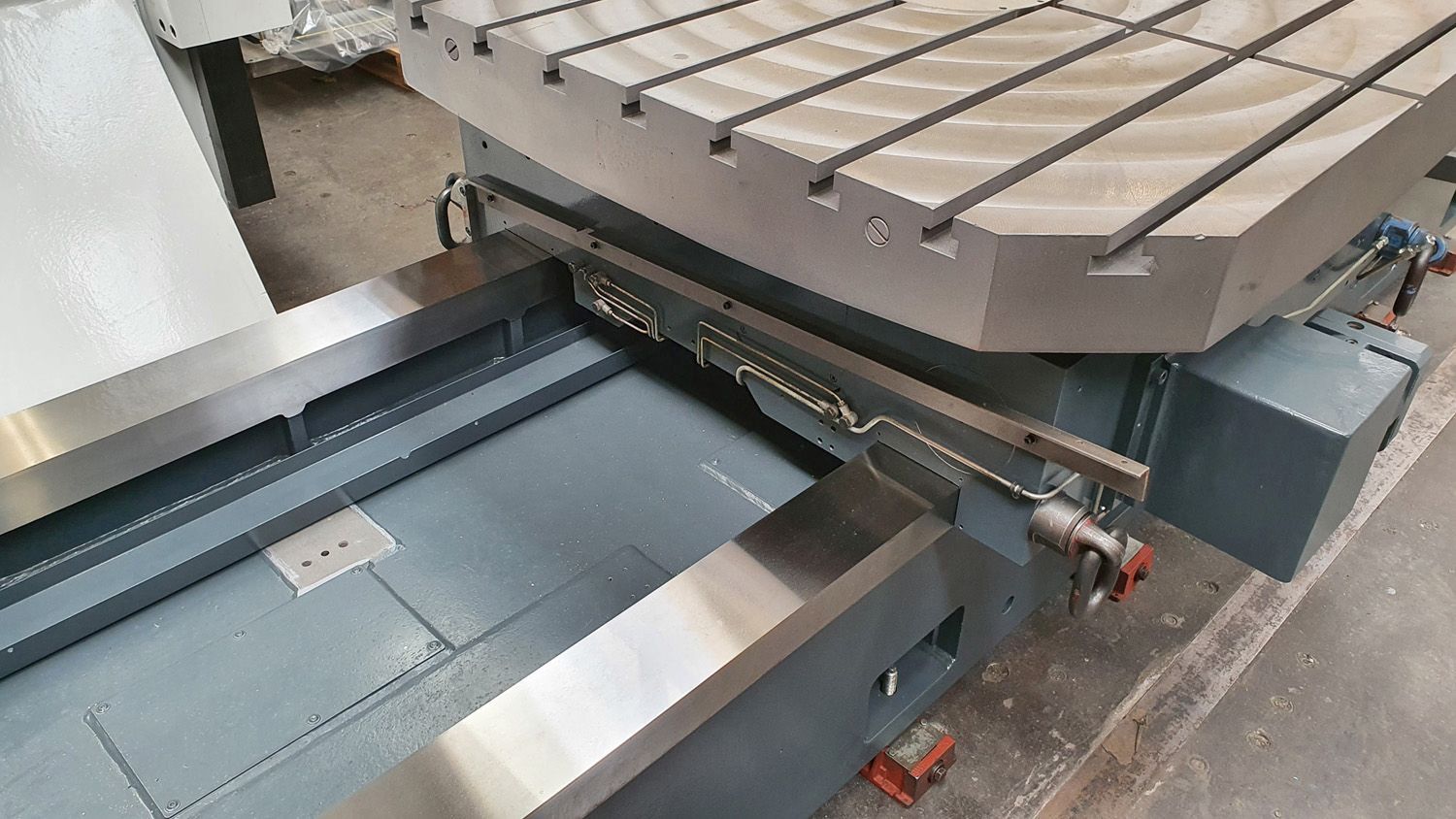

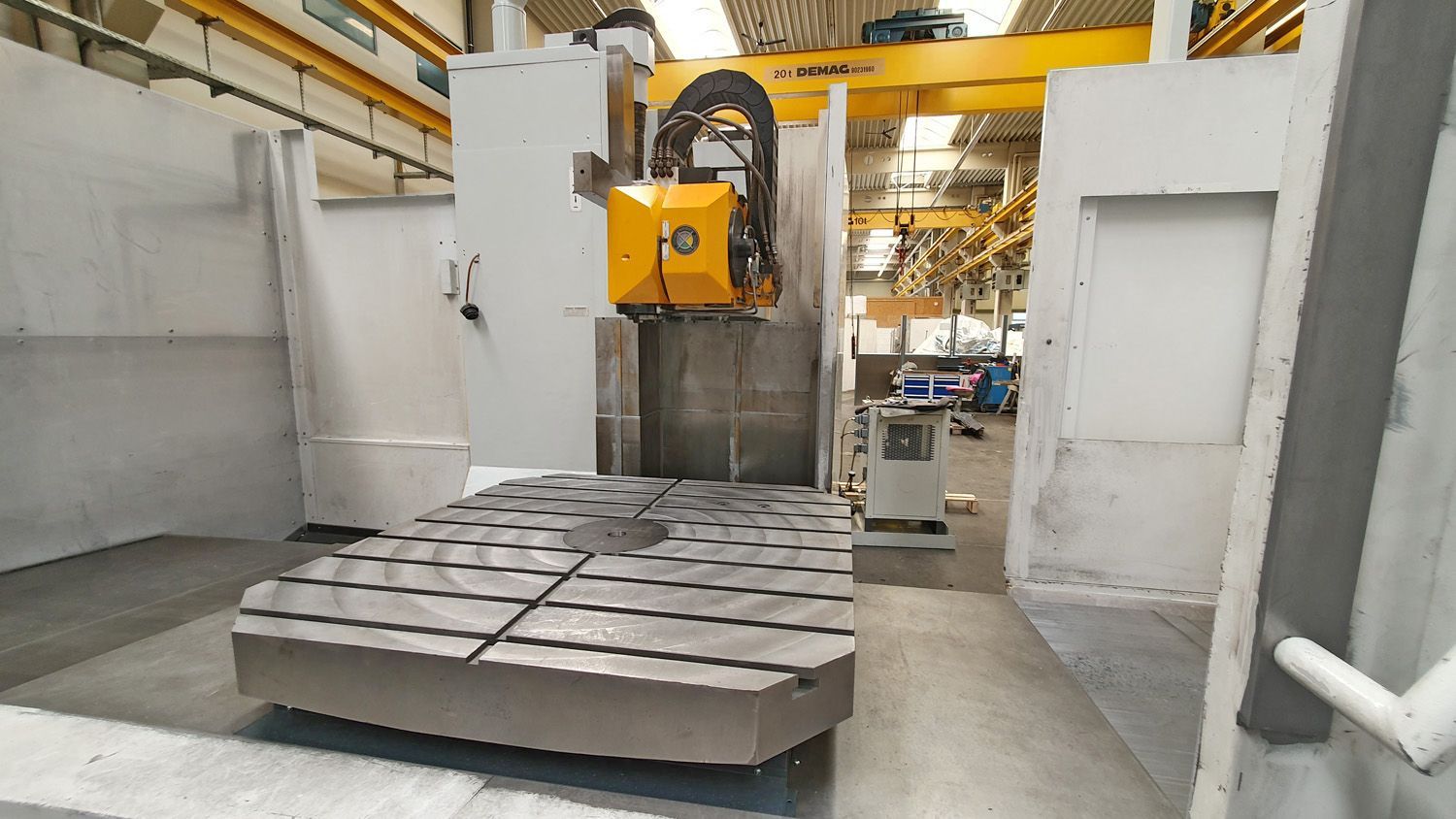

- Round table size 1260 x 1260 mm, with T-slots 22 mm, distance 140 mm
- Rotary table rotation 360° (stepless, with clamping)
- Rotary table load 4000 kg
- Spindle power 30 kW (100% ED), max. torque 1200 Nm
- Spindle speed 20 - 4000 rpm (in 2 ranges continuously variable), with oil cooling
- Axis speeds 4 m/min or 12 m/min rapid traverse
- CNC control Heidenhain TNC 426M with electronic handwheel HR 410

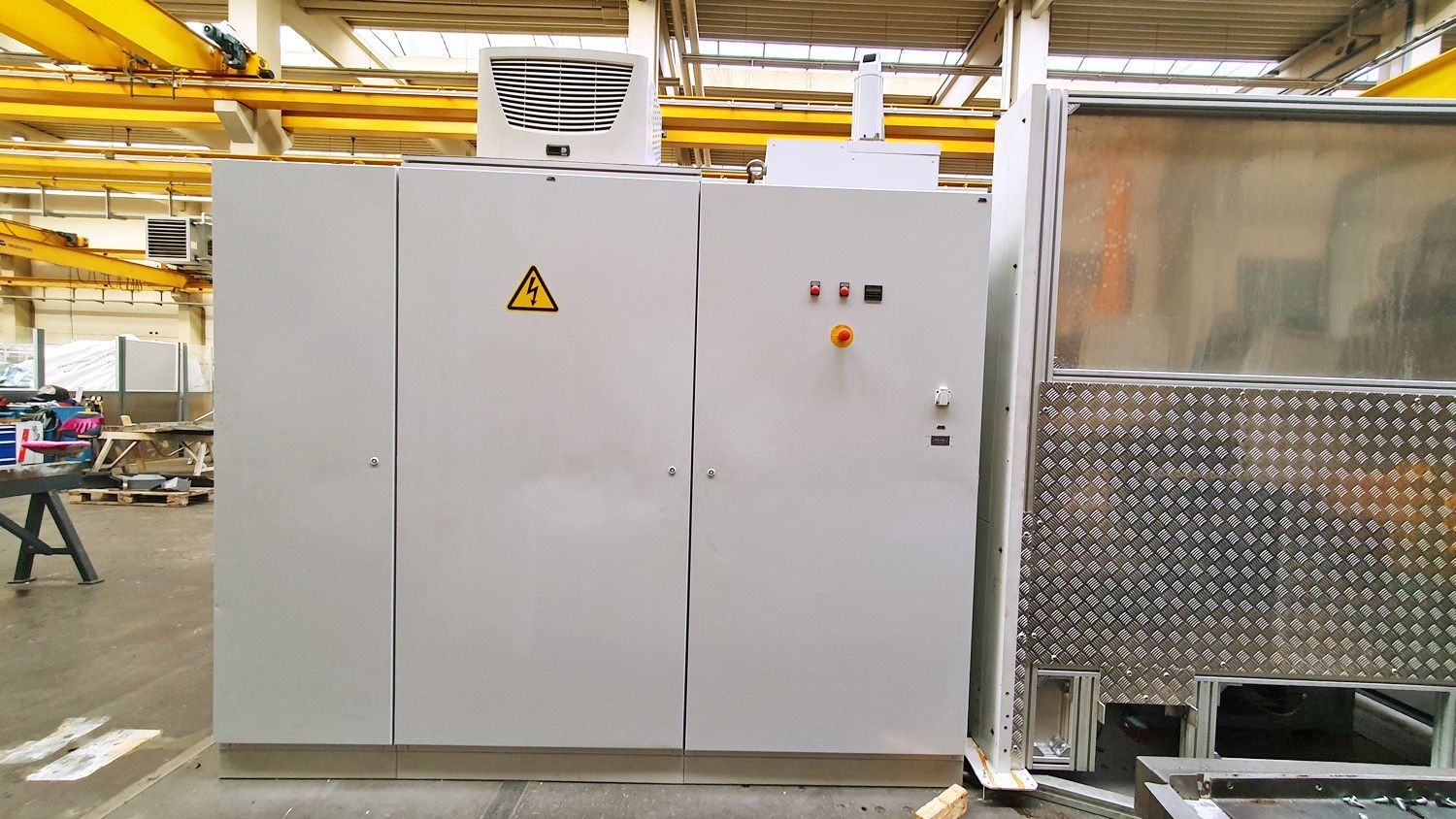

- Drive technology made by Siemens
- Coolant system with internal cooling up to 16 bar. Air/water switchover.
- Purolator double-switch filter with 270 l collection tank
- Work area paneling all around, open at the top, with longitudinal chip conveyor
- Connection data: 400 V; 50 Hz; approx. 50 kVA
- without mounting elements (fixators), without assembly and commissioning

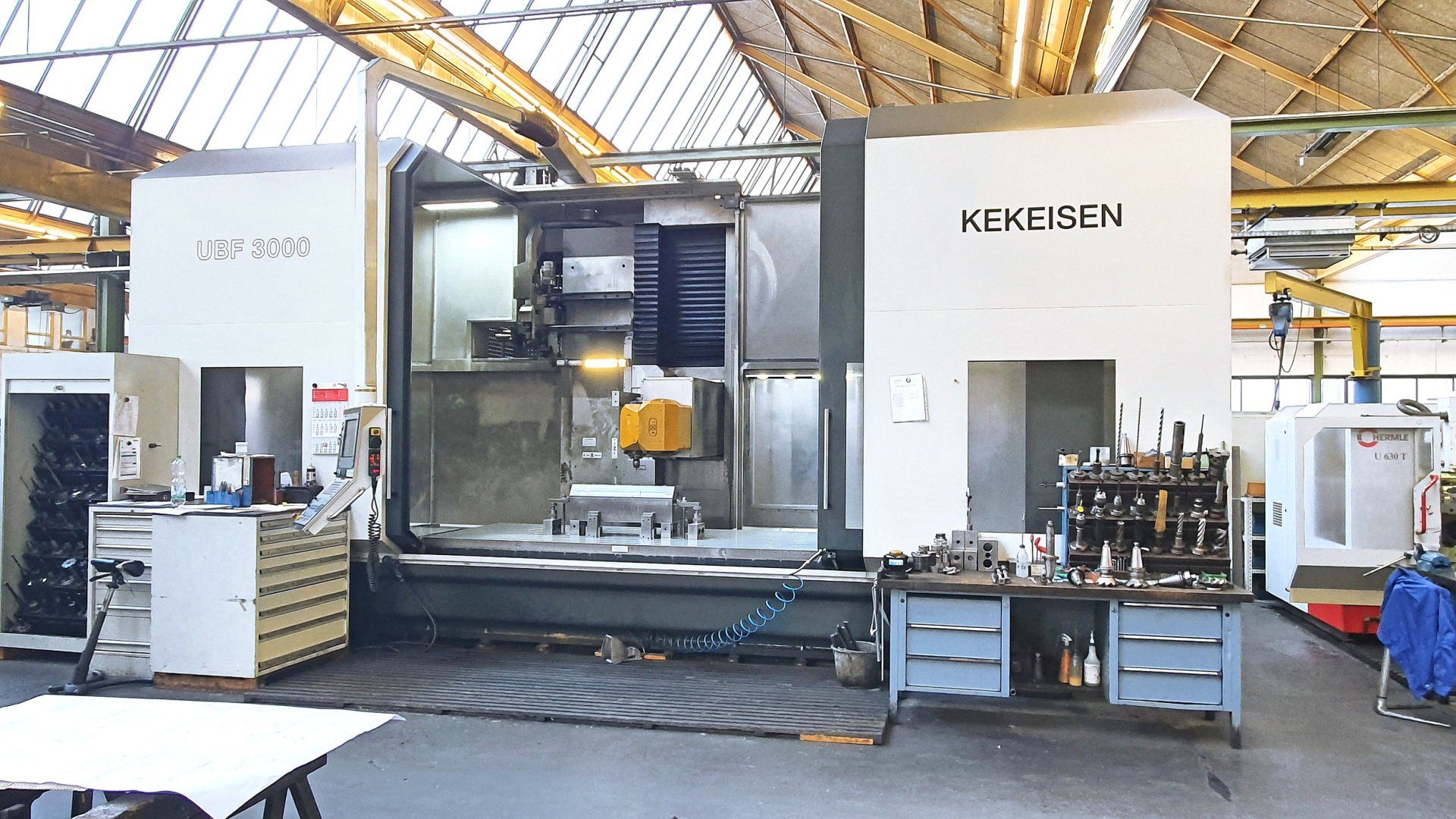

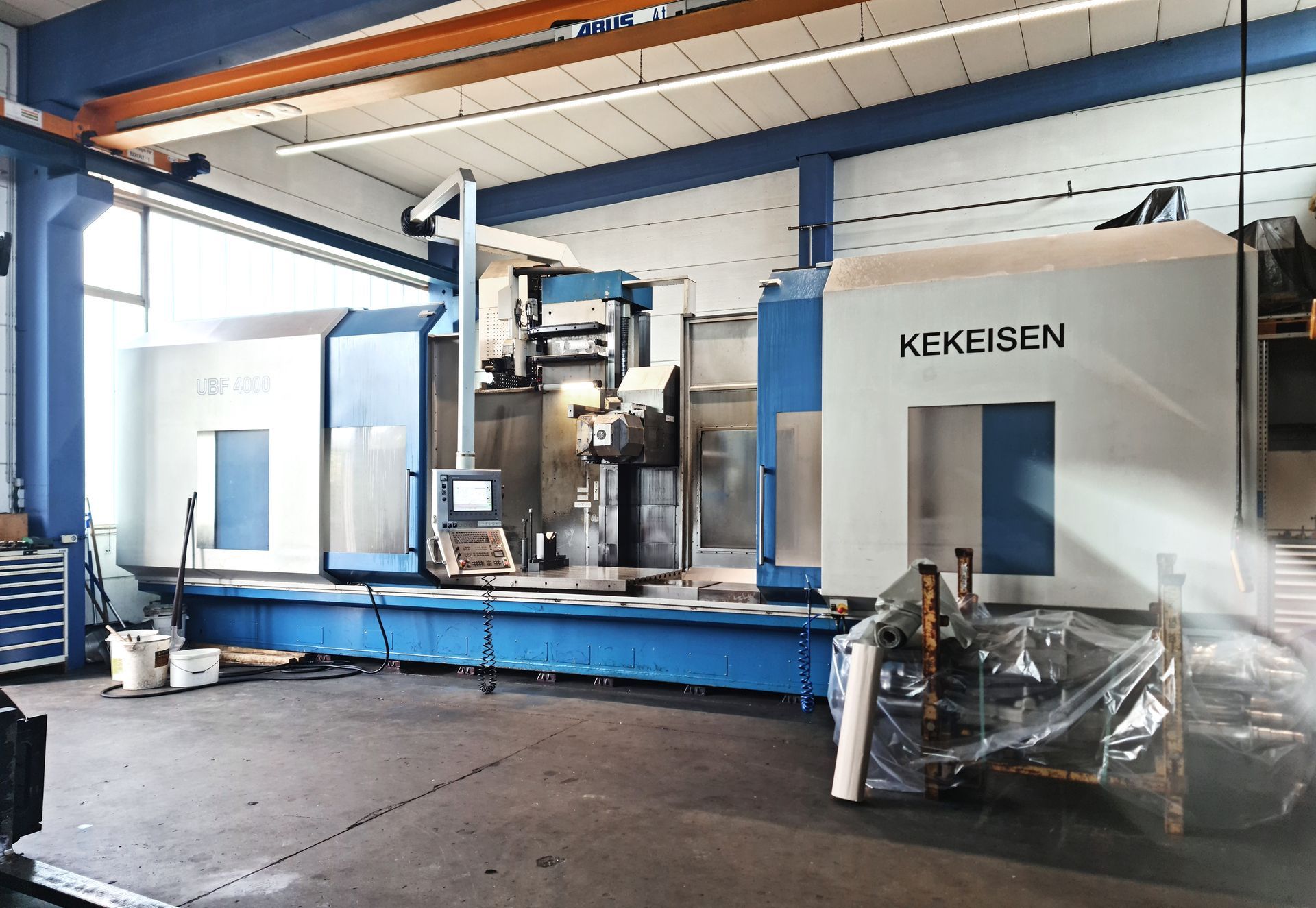

You might also be interested in these machines........
