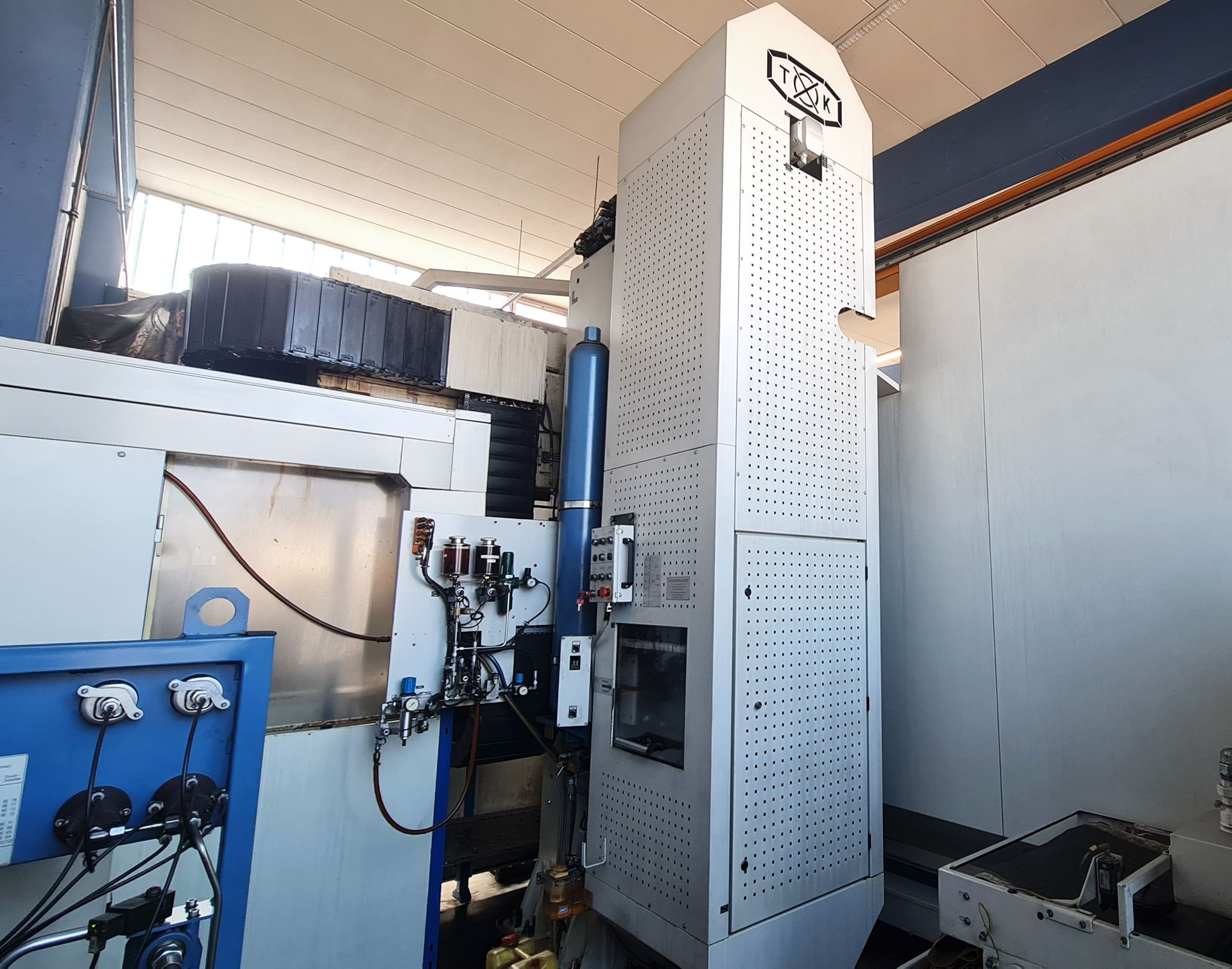

KEKEISEN Bed-type milling machine UBF 4000/18

Year of manufacture 2009, machine no. F50073

well-maintained, very good condition

• 2-axis automatic universal milling head
• A-axis with automatic positioning in 1° increments; B-axis stepless
• SK50 tool holder according to DIN 69871 with BigPlus face contact
• Coolant through spindle form AD
• Longitudinal travel of the table (X-axis) 4000 mm
• Vertical travel of the spindle housing (Z-axis) 1800 mm
• Transverse travel of the spindle housing (Y-axis) 1400 mm
• Table size 4200 x 1120 mm, table load capacity 8000 kg
• Table surface with T-slots 22 mm, spacing 140 mm
• Spindle speed 20 - 7000 rpm (infinitely variable in 2 ranges) with oil cooling
• Main drive 30 kW
• Axle speeds 4 m/min or 18 m/min (rapid traverse)
• Heidenhain iTNC 530 CNC control with HR410 electric handwheel
• 3D wireless measuring probe m&h
• Tool changer with 60 positions, max. Ø 250 mm, max. 400 mm long
• Coolant system (also internal coolant system, max. 50 bar) with 700 l tank paper band filter
• Fully enclosed cladding
• with chip conveyor between bed and table
• without fixings, without setup and commissioning
• Connection data: 400 V; 50 Hz; approx. 57 kVA

Price: on request, plus VAT.

Delivery ex works, delivery time: available from approximately July 2026
