UFF traveling column milling machines - the solution for machining long and bulky parts

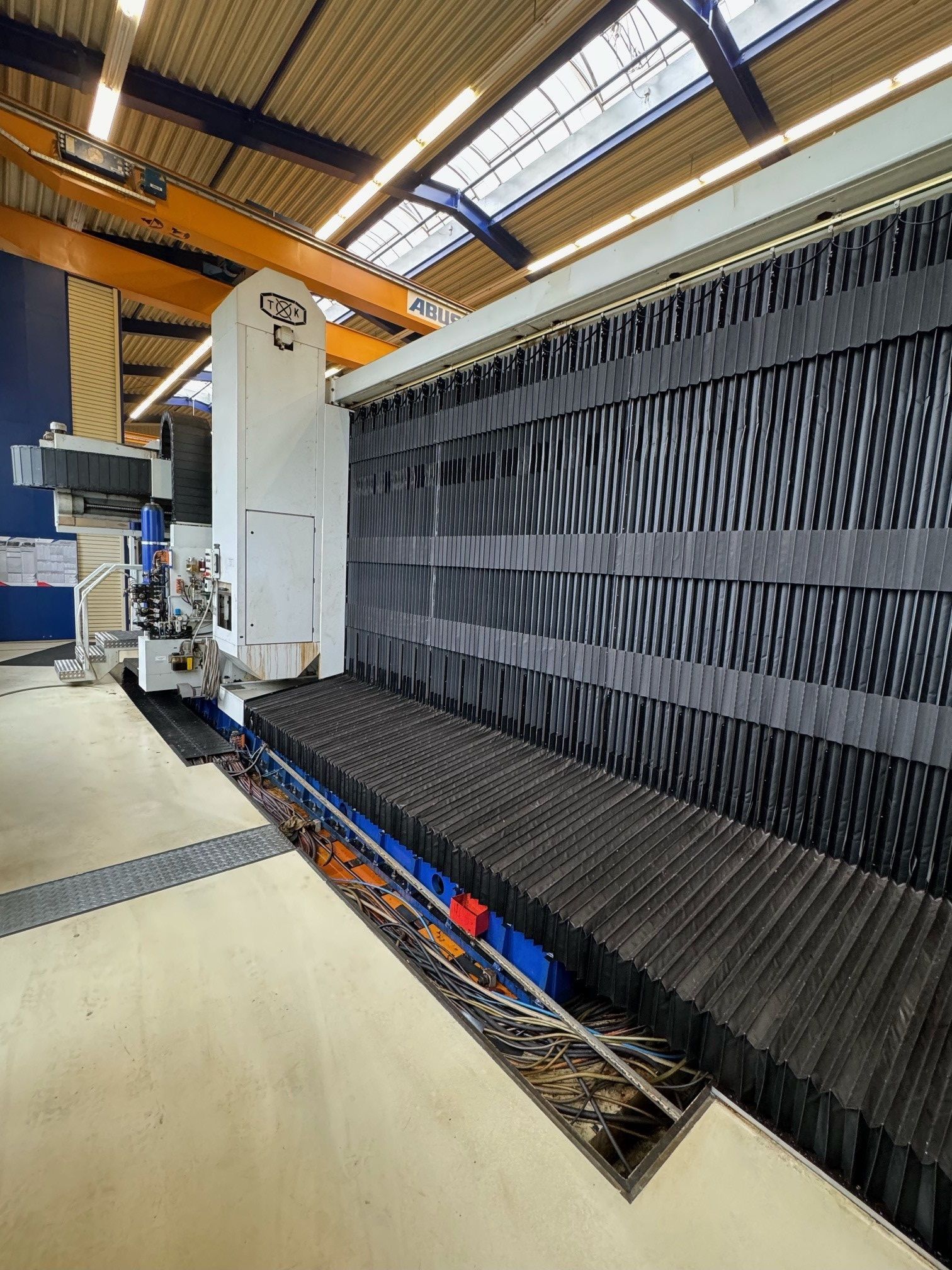

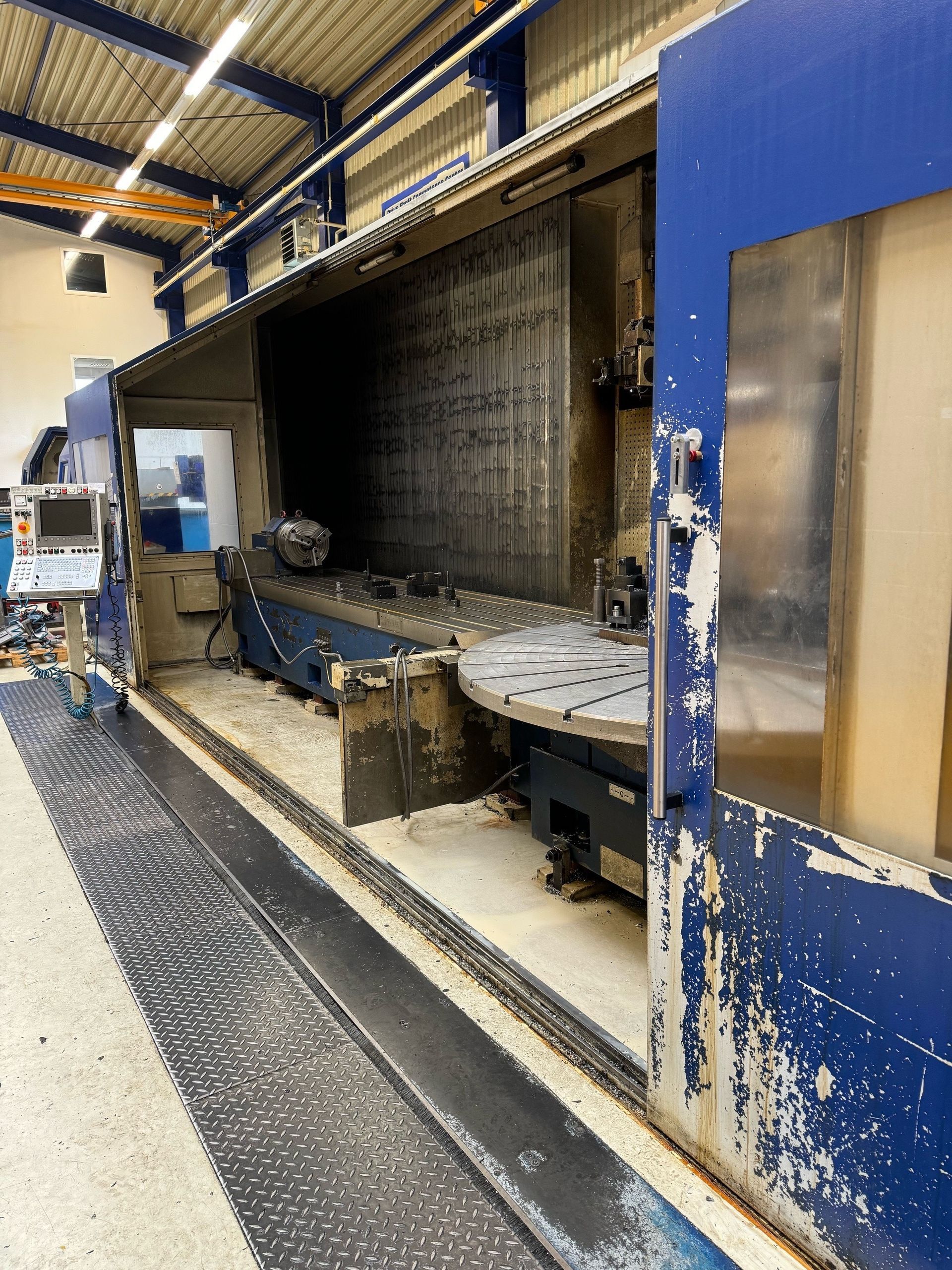

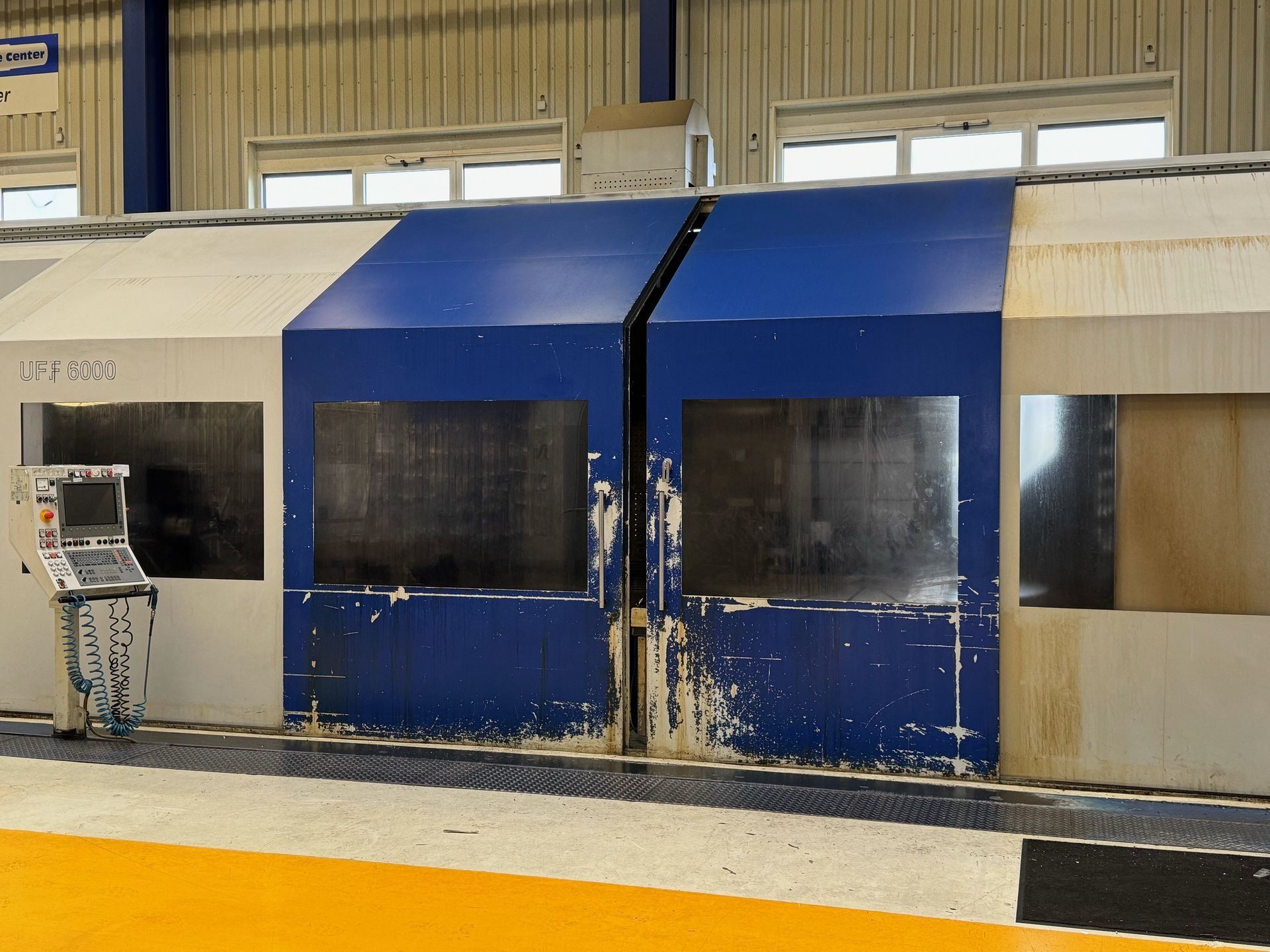

KEKEISEN Universal Traveling Column Milling Machine UFF 6000/13
Year of manufacture 2006, machine number F47963, well maintained, very good condition
- 2-axis automatic universal milling head
- A-axis with automatic positioning in 1° positions; B-axis continuously variable
- Tool holder HSK100 with coolant through the spindle
- Longitudinal travel of the column (X-axis) 6000 mm
- Vertical travel of the headstock (Z-axis) 1300 mm
- Cross travel of the headstock (Y-axis) 1200 mm
- Table size 6200 x 1000 mm, table load 8000 kg
- Table surface with T-slots 22 mm, distance 140 mm
- NC rotary table 1400 x 1400 mm at the same height as the long table; top plate Ø 2100 mm
- NC reversible vice Ø420 mm, center height 280 mm, with tailstock and steady rest
- Spindle speed 20 - 7000 rpm (in 2 ranges continuously variable)
- Axis speeds 4 m/min or 15 m/min (rapid traverse)
- CNC control Heidenhain iTNC 530 with electronic handwheel HR420
- Complete 2nd user interface on the moving operator platform
- Renishaw 3D wireless measuring probe
- Tool changer with 60 positions, max. Ø 250 mm, max. 400 mm long
- Coolant system (also IKZ, max. 50 bar) with 600 l tank paper belt filter
- Fully enclosed all around, with partition wall for pendulum operation
- with chip conveyor between bed and table and extraction system
- without fixators, without installation and commissioning
- Connection data 400 V; 50 Hz; approx. 57 kVA
