UBF - the universal bed milling machine for the economical machining of larger parts

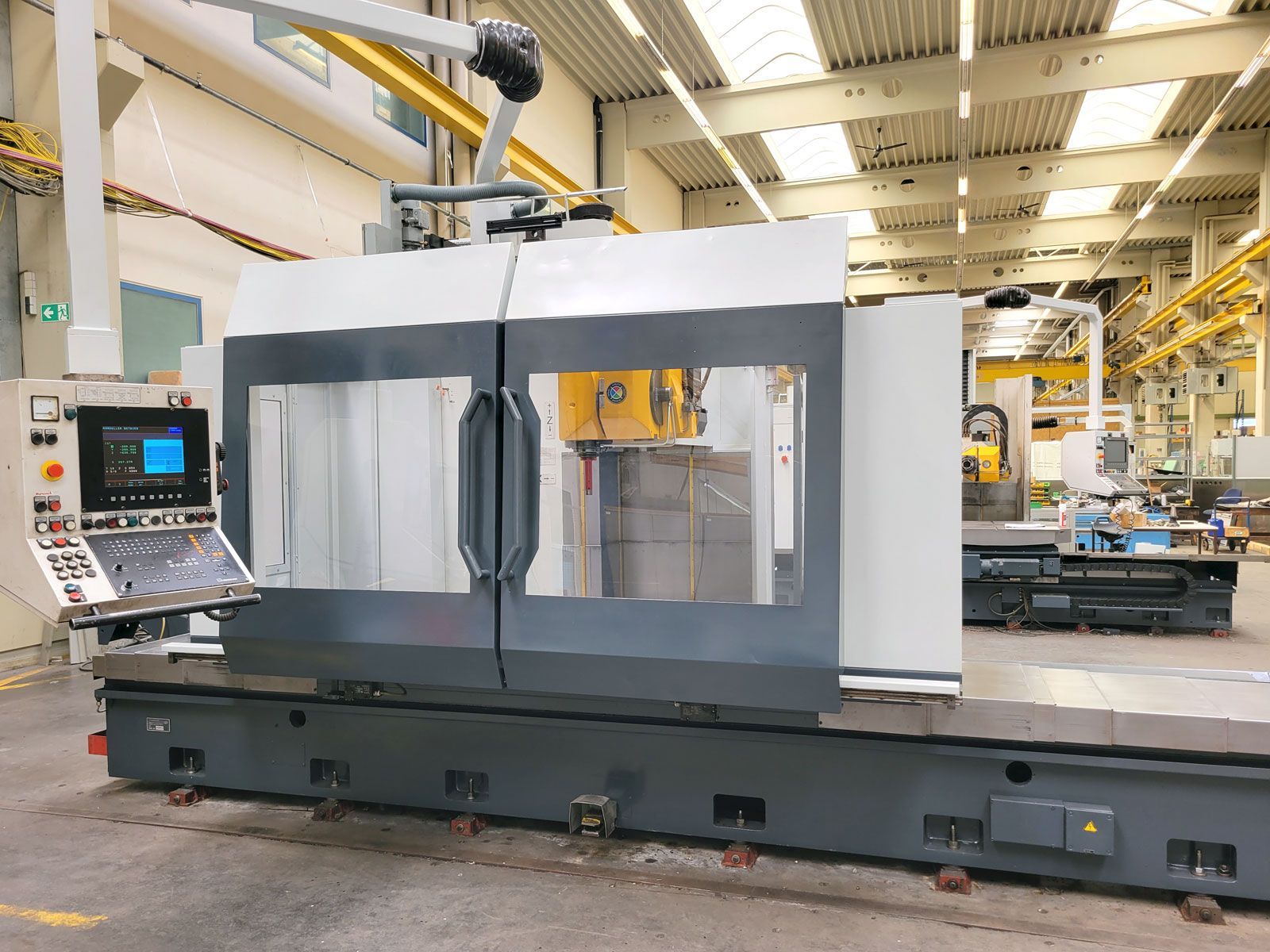

KEKEISEN universal bed milling machine UBF 2000/13,
Year of manufacture: 1996, machine no. F39033
well maintained, very good condition, partially overhauled and tested in 2025
well maintained, very good condition, partially overhauled and tested in 2025

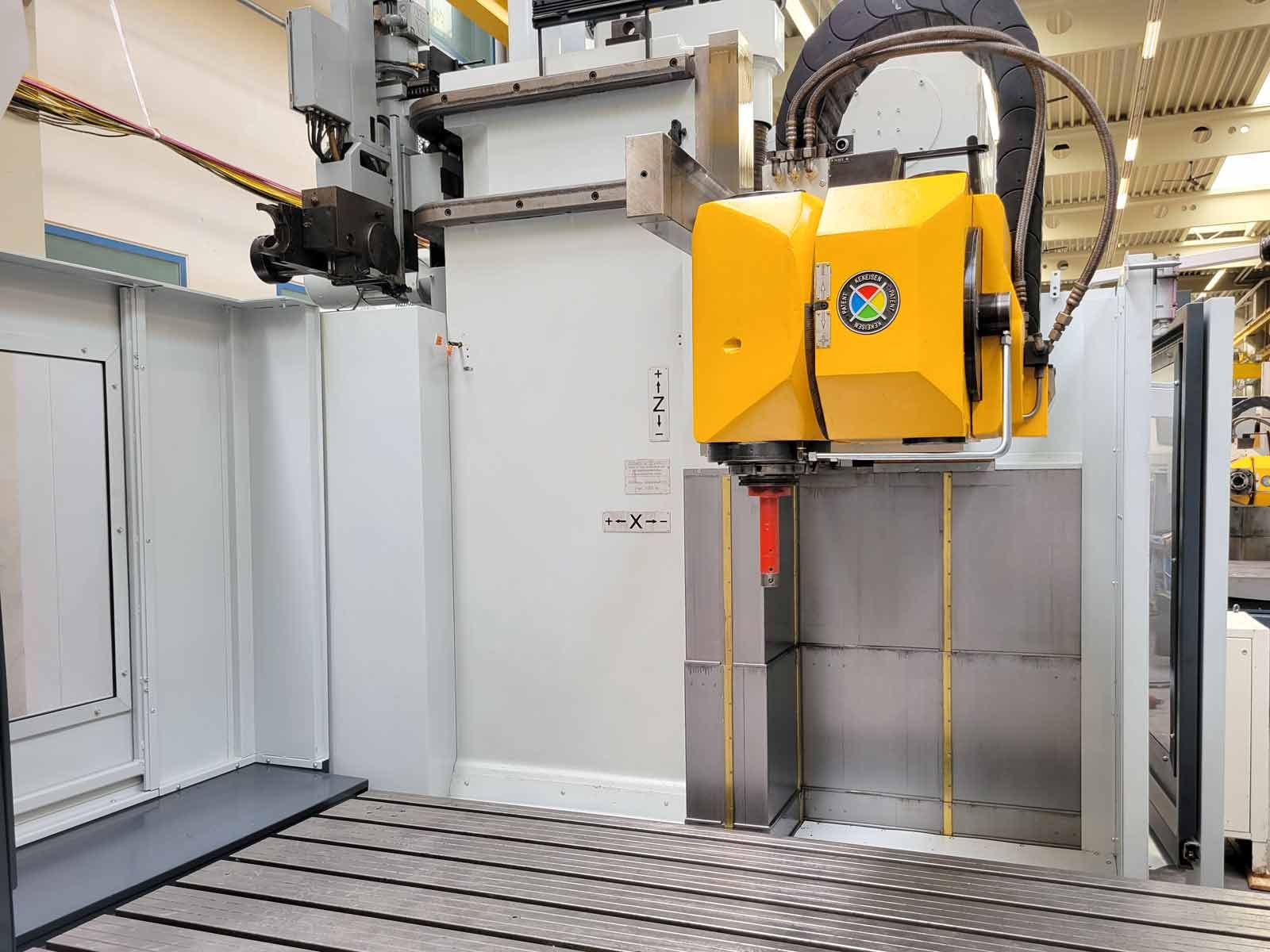

- 2-axis universal head automatically adjustable, with locking in Hirth gearing
Intermediate positions adjustable in 1° steps by tapping - Tool holder SK50 according to DIN 69871/872
- Longitudinal travel of the table (X-axis) 2000 mm
- Cross travel of the headstock (Y-axis) 1000 mm
- Vertical travel of the headstock (Z-axis) 1300 mm
- Machine table size 2200 x 960 mm, with T-slots 22 mm, distance 140 mm
- Machine table load 6000 kg
- Spindle power 30 kW (100% ED), max. torque 1180 Nm
- Spindle speed 20 - 3800 rpm (in 2 ranges continuously variable), with oil cooling
- Axis speeds 4 m/min or 10 m/min rapid traverse

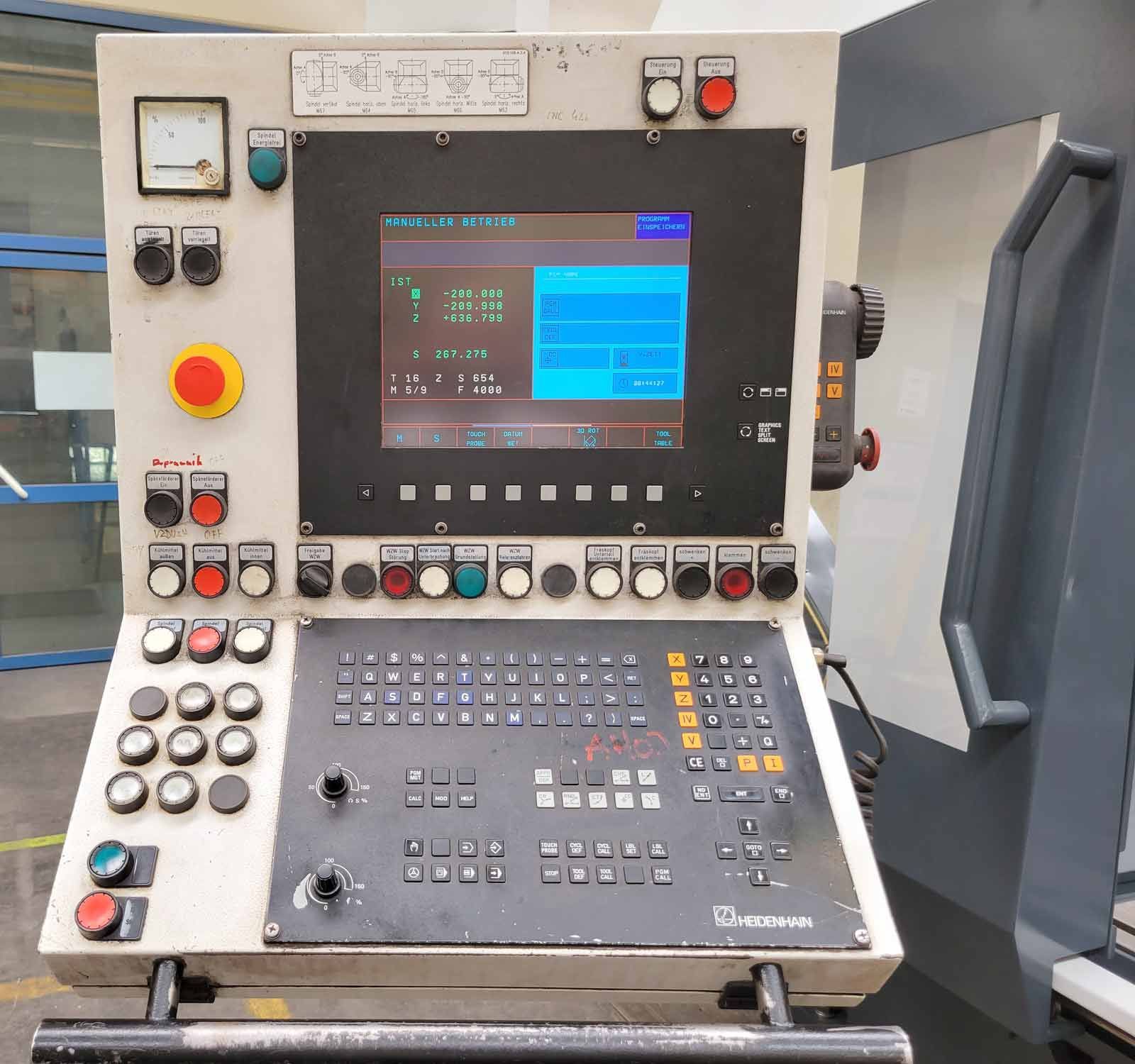

- CNC control Heidenhain TNC 426 CA with electronic handwheel HR 330
- Drive technology make Baumüller
- Coolant system with internal cooling up to 16 bar. Air/water switchover.
- Purolator double-switch filter with 200 l collection tank
- Tool changer with 30 positions

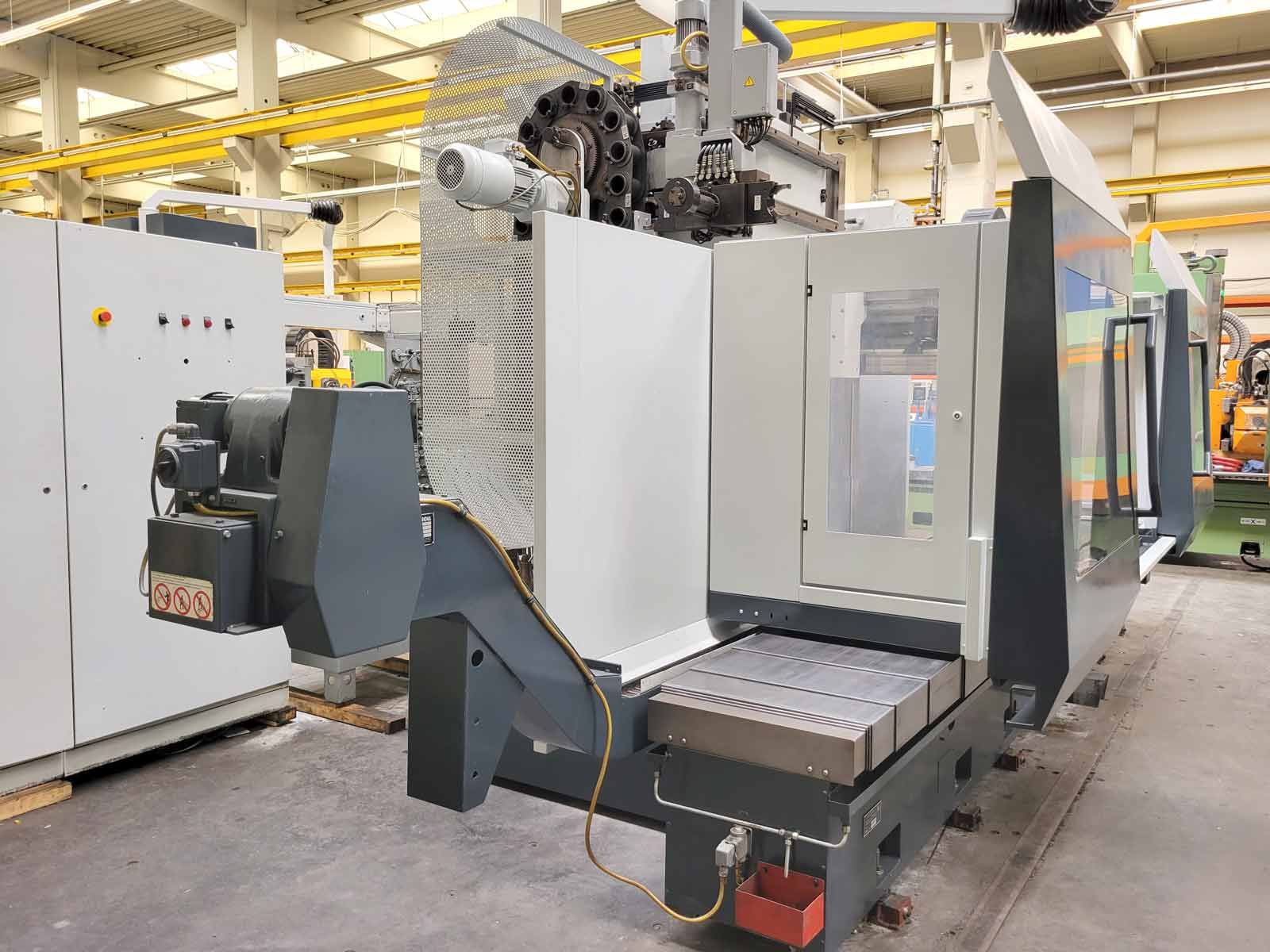

- Work area paneling all around, open at the top, with longitudinal chip conveyor
- Connection data: 400 V; 50 Hz; approx. 55 kVA
- without mounting elements (fixators), without assembly and commissioning
